AKI is a serious complication of PCI

Most cardiac patients fall under the high-risk category for acute kidney injury (AKI). Heart failure, ST-elevation myocardial infarction (STEMI), cardiogenic shock, chronic kidney disease (CKD), > 75 years old and diabetes contribute to the higher incidence of contrast-induced nephropathy (CIN).1

Person with heart icon

AKI affects 1 in 5 hospitalized patients2

Person with lungs icon

Inpatient mortality for AKI patients is 20-25%; 50% for those on dialysis3

Explore the broadest suite of integrated solutions for ultra-low contrast PCI procedures

Expand each product to learn more.

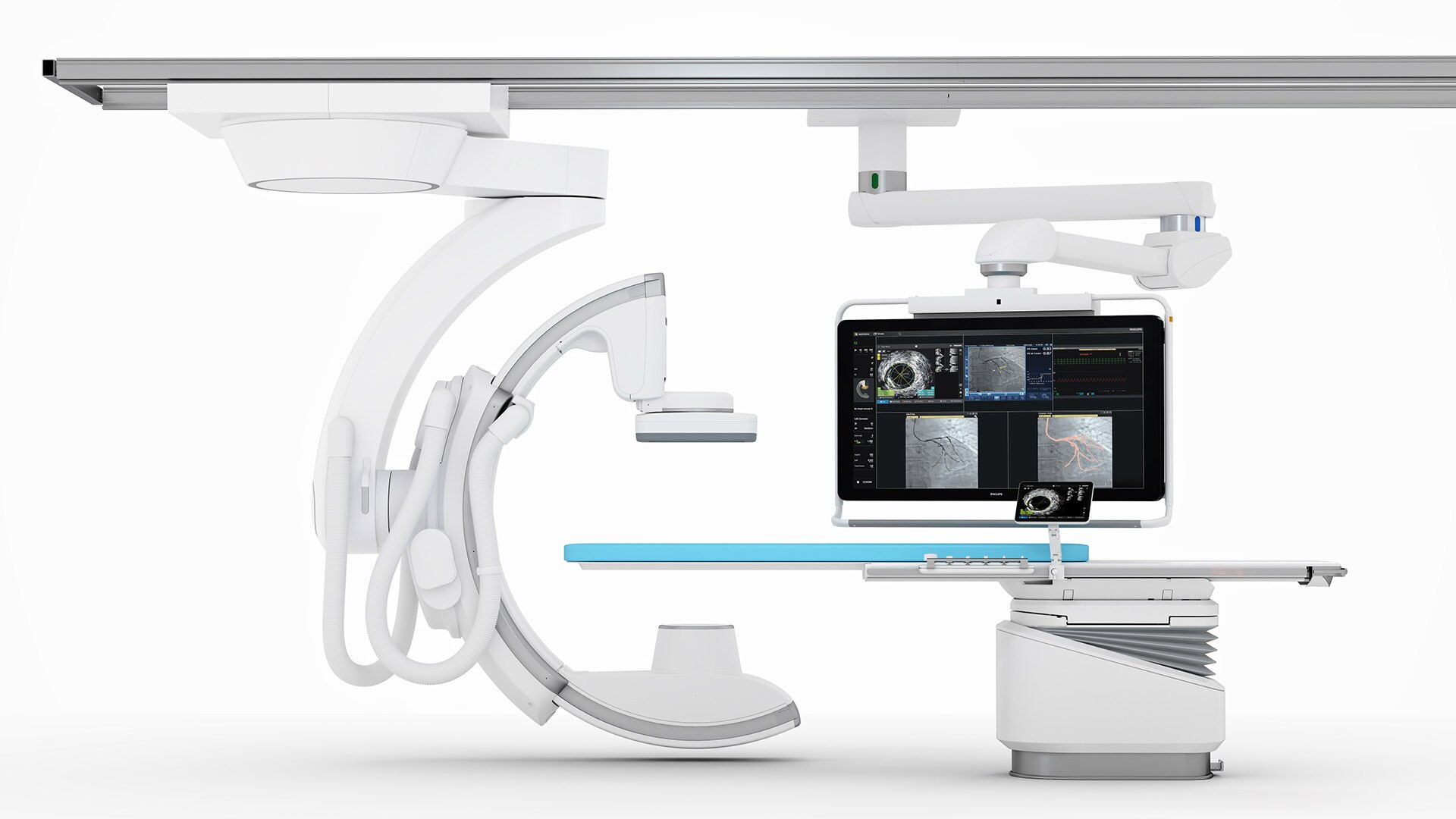

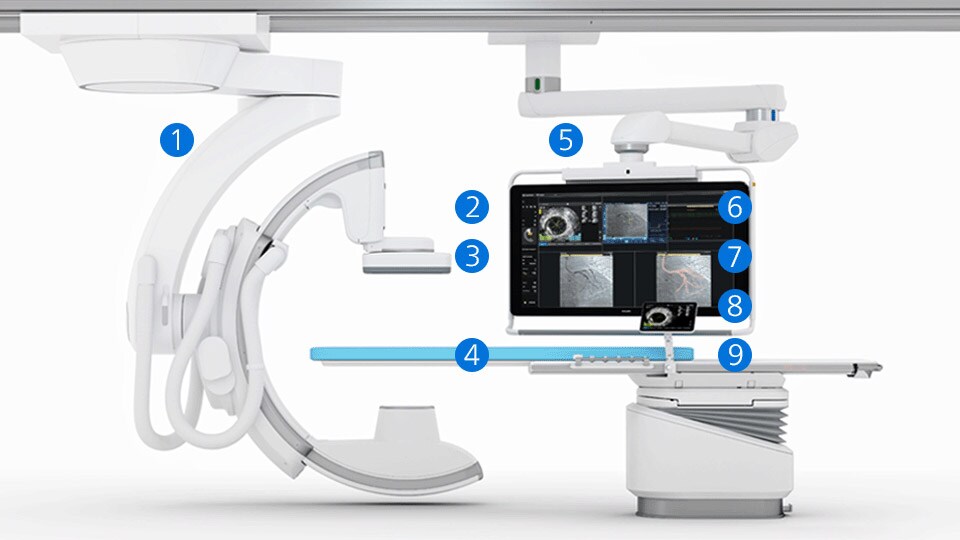

PCI hotspot image
ULC PCI treatment hotspot mobile

Explore clinical techniques for contrast reduction

Prof Dariusz Dudek

Ultra-low contrast coronary angiography and zero-contrast percutaneous coronary intervention for prevention of contrast-induced nephropathy: step-by-step approach and review

Prof. Dariusz Dudek
President EAPCI ESC
Jagiellonian University
Krakow, Poland

Watch ultra-low contrast PCI contributions from around the world

Learn about ultra low contrast

Watch ULCPCI symposium at EuroPCR 2023

Video on Dr Al Aziz explaining contrast reduction on PCI

Watch ULCPCI by Dr. Abdul Mozid at ACI 2023

Learn about ultra low contrast

Watch ULCPCI symposium at EuroPCR 2022

Javier Escaned in Spain

Watch ULCPCI Symposium at EuroPCR 2021

Learn about ultra low contrast

Watch ULCPCI Symposium at EuroPCR 2020

Video on why contrast usage is important

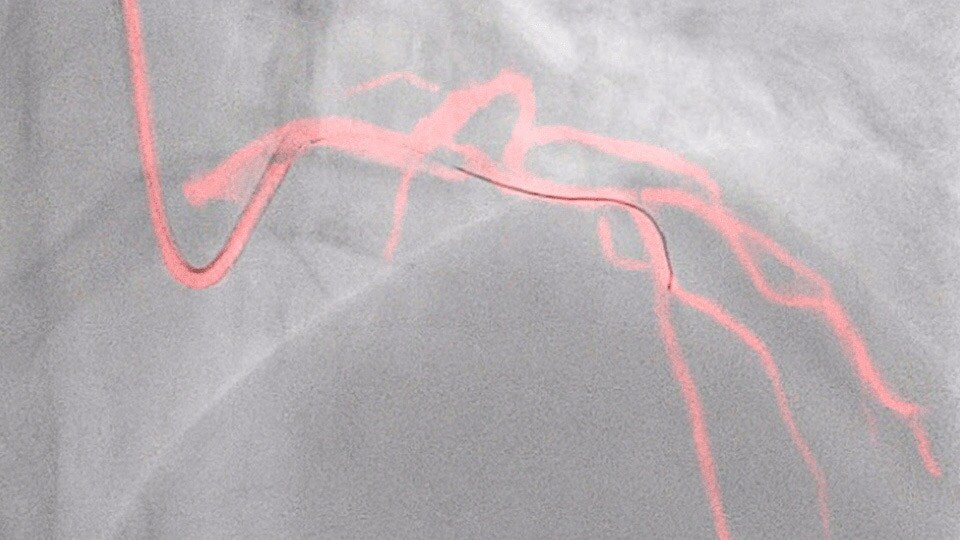

Watch Prof. Escaned discuss Dynamic Coronary Roadmap for contrast reduction

See how to perform ultra-low contrast PCI in complex bifurcation disease with Dr. Allen Jeremias and Dr. Ziad Ali

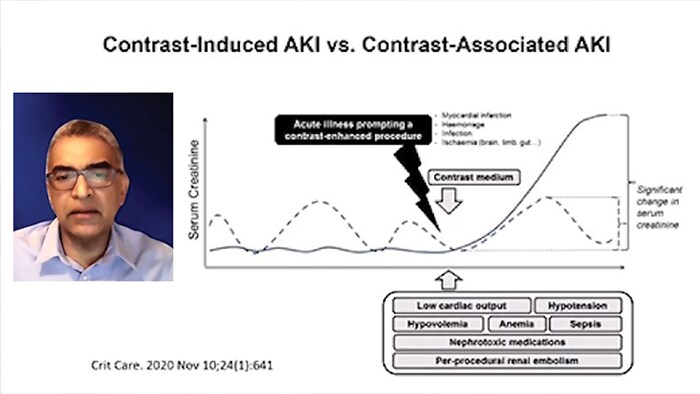

Learn about renalism from a nephrologists perspective from Prof. Radhakrishnan

Video on Dr Al Aziz explaining contrast reduction on PCI

Dr Al-Azizi explains why contrast reduction in PCI is important to him

Dr Kaki video on ultra-low contrast PCI

Dr Kaki gives his tips on the best tools and techniques for ultra-low contrast PCI

New data shows that Philips Dynamic Coronary Roadmap has the potential to reduce the use of contrast agent during PCI procedures by 28.8%

Educational content about contrast reduction

Ultra-low contrast PCI cases and videos


Watch more peer-to-peer videos on contrast reduction in high-risk patients.

Approach to contrast use in PCI

As low as reasonably achievable (ALARA) is a widely accepted approach to contrast use in PCI due to contrast induced acute kidney injury (CI-AKI).

Contrast medium has a "two-hit" model of direct contrast-induced renal tubular epithelial cell toxicity and vasoconstriction within the renal arteries that can last up to several hours, which results in the kidneys becoming ischemic and a decreased glomerular filtration rate (GFR), this in-turn causes a rise in creatinine. This complication adds to the patient’s length of stay and cost accrual to the hospital.

CI-AKI (also referred to as contrast induced nephropathy, CIN) is one of the major causes of hospital-acquired AKI:

  • >4 million hospitalizations reported each year.
  • Patients who undergo coronary angiography are at highest risk for CIN.4
  • CIN is considered the 3rd most common cause of hospital-acquired renal dysfunction.4

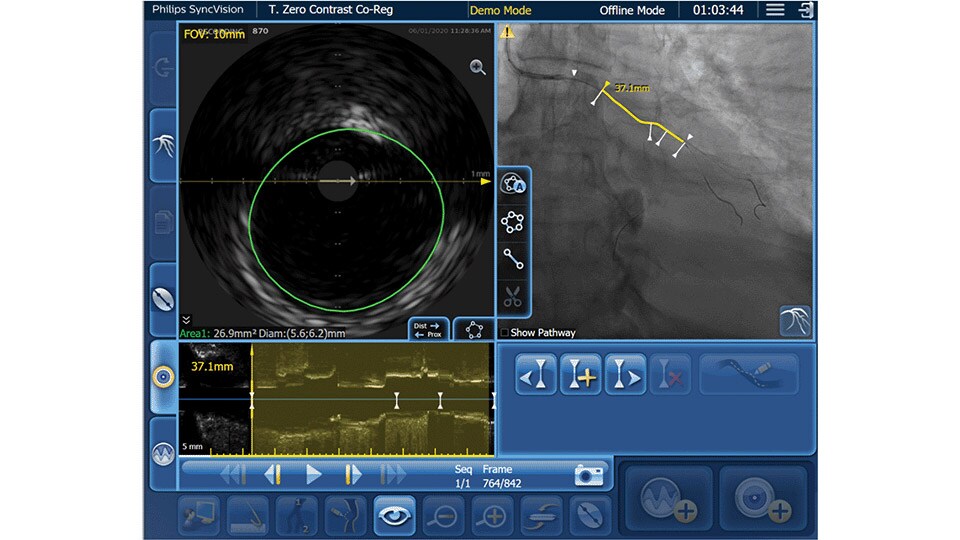

New invasive imaging techniques and co-registration software allows PCI to be performed with limited amounts of contrast, even with zero-contrast use, to reduce the risk of CI-AKI for all patients, and especially those with renal insufficiency.

5.73% of patients leave the cath lab with AKI following PCI.5 Those with AKI had higher hospitalization cost than those without ($38,869, SD 42,583 vs $17,167 SD 13,994, p <0.001).

Hospital costs icon

AKI was associated with an increase in hospitalization cost of $9,4485

Patient in hospital bed icon

AKI was associated with an increase length of stay of 3.6 days5

Every incremental 75ml of contrast used increased the risk of AKI by 42%15

1,349,612 patients who underwent PCI (CathPCI Registry)15

The American College of Cardiology’s National Cardiovascular Data Registry (NCDR) CathPCI registry has a low threshold (rise in serum creatinine of 0.3 mg/dL) for AKI and encourages quality improvements.

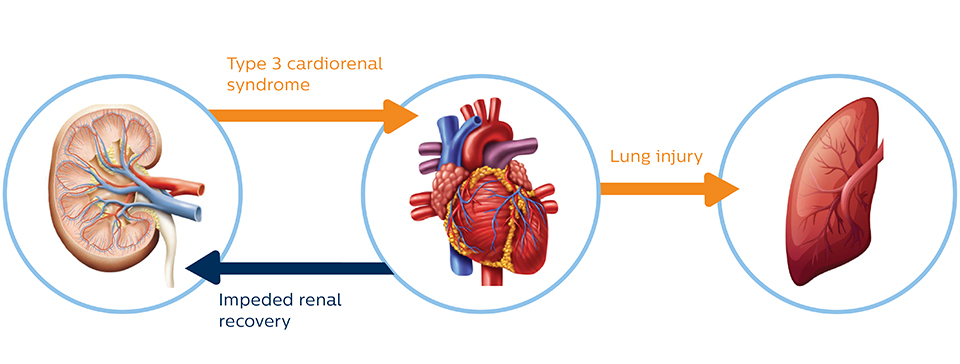

Cardiac and pulmonary consequence of AKI

AKI has been shown to promote cardiac injury and dysfunction, defined as type 3 cardiorenal syndrome. Heart failure, in turn, can impede renal recovery. Lung injury and hypoxemia after acute kidney injury can arise both from increased capillary permeability and from increased hydrostatic capillary pressure due to heart failure.6

High-risk CAD

Preventing CI-AKI

High-risk CAD

Cardiovascular disease is the leading cause of death in patients with chronic kidney disease (CKD), stage IV-V, and end stage renal disease (ESRD) with the level of glomerular filtration rate (GFR) being an independent predictor of atherosclerotic cardiovascular disease.7

Cardiovascular risk odds ratio according to stage of CKD8*


Estimated GFR
(ml/min/1.73 m2)

Cardiovascular risk
(odds ratio)



Dependent on degree of proteinuria
















∗ The increase in risk in comparison with people free from CKD depends on the age of the population studied: the younger the subject, the higher the relative risk. Microalbuminuria increases the cardiovascular risk by an additional 2- to 4-fold.

† Evidence of functional or structural kidney abnormalities for ≥3 months defined as abnormal renal biopsy, markers of renal damage (persistent proteinuria, albuminuria, hematuria) or structural renal abnormality on imaging studies.

CKD patients are widely excluded from RCT’s which leads to a paucity of data and makes cardiovascular management in this population very challenging.

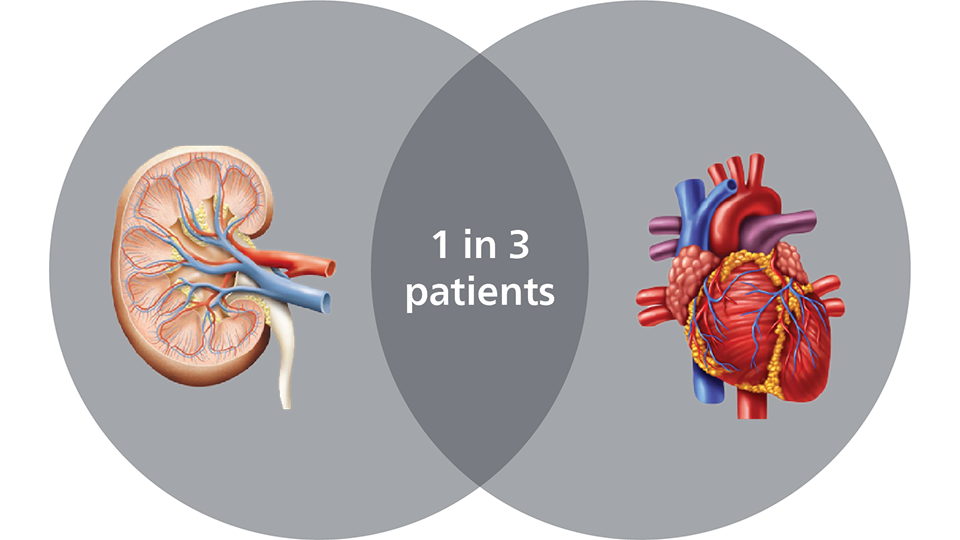

CKD patients with coronary artery disease pose a significant demographic to address, 30-60% (1 in 3)9 and have a significantly increased risk of CV mortality due to contrast induced nephropathy (CIN)

Mortality significantly increases at 1-year with CKD and CIN10

Renalism11: Many CKD patients will get deferred from PCI through fear of CIN

Despite a potential mortality benefit with coronary revascularization in patients with CKD presenting with ACS, diagnostic and therapeutic coronary interventions are under-utilized in patients with CKD, including those with ST elevation MI.


Clinical presentation

Patients (N)


CKD invasive

No CKD invasive

Chertow et al






Han et al






Goldenberg et al






Szummer et al






Nauta et al






MI, myocardial infarction; NSTE, non-ST segment elevation; ACS, acute coronary syndrome. CKD defined based on eGFR<60 ml/min per 1.73 m²
a Denotes the percentage of patients with NSTEMI who underwent revascularization based on CKD status, defined as eGFR<60 ml/min per 1.73 m2.
b CKD defined based on eGFR<60 ml/min per 1.73 m2.

Preventing CI-AKI

A consensus exists for the beneficial effect of hydration in preventing CI-AKI. Hydration increases urine flow rates, reduces the concentration of contrast media in the tubule, and expedites excretion of contrast media, thus reducing the length of time that tubular cells are exposed to the toxic effects of contrast media.13 Patient hydration can be managed using the Poseidon trial protocol. Left ventricular end diastolic pressure (LVEDP) guided fluid administration. LVEDP is an important measure of ventricular performance and may identify patients at increased risk for developing late clinical symptoms of heart failure (HF).


3mL/kg bolus


LVDEP guided rate X 4hrs




5.0 ml/kg/hr


3.0 ml/kg/hr


1.5 ml/kg/hr

Contrast volume

Contrast volume is a key risk factor for CI-AKI and matters the most in the highest-risk patient. The incremental use of contrast beyond the Maximal Allowable Contrast Dose (MACD) is associated with an increased risk of CI-AKI.14

MACD = Contrast volume/eGFR ratio ≤ 1.

MACD Ratio and CI-AKI. Calculated ratios of contrast volume to the predicted Maximal Allowable Contrast Dose (MACD) are plotted by the crude (orange bars) and risk-adjusted (black diamonds) rates of contrast-induced acute kidney injury (CI-AKI).

Technology to support contrast reduction

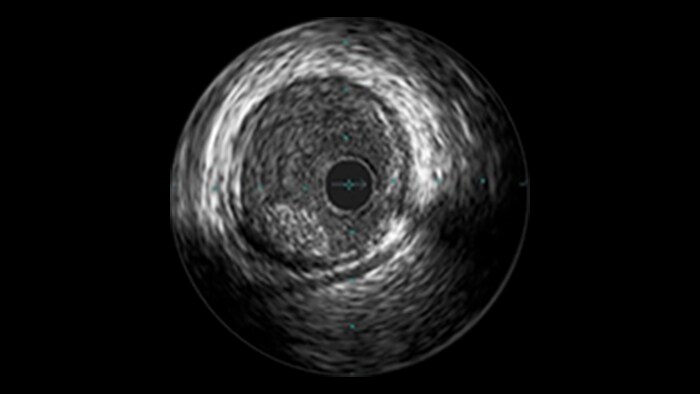

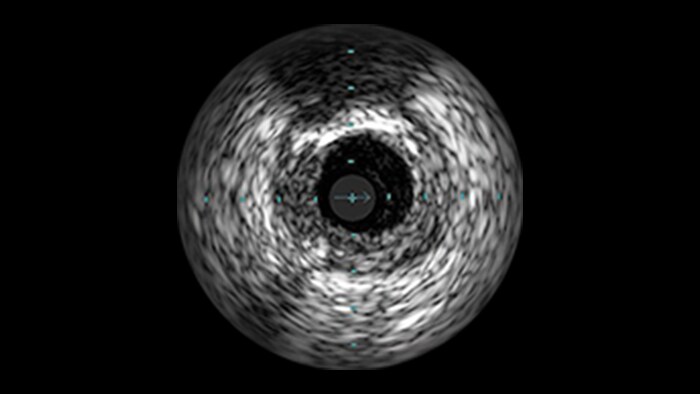

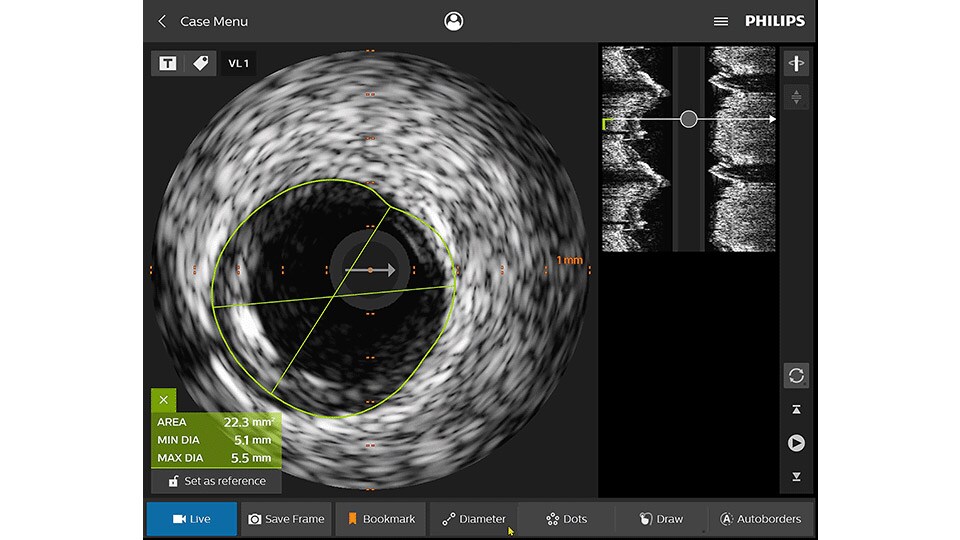

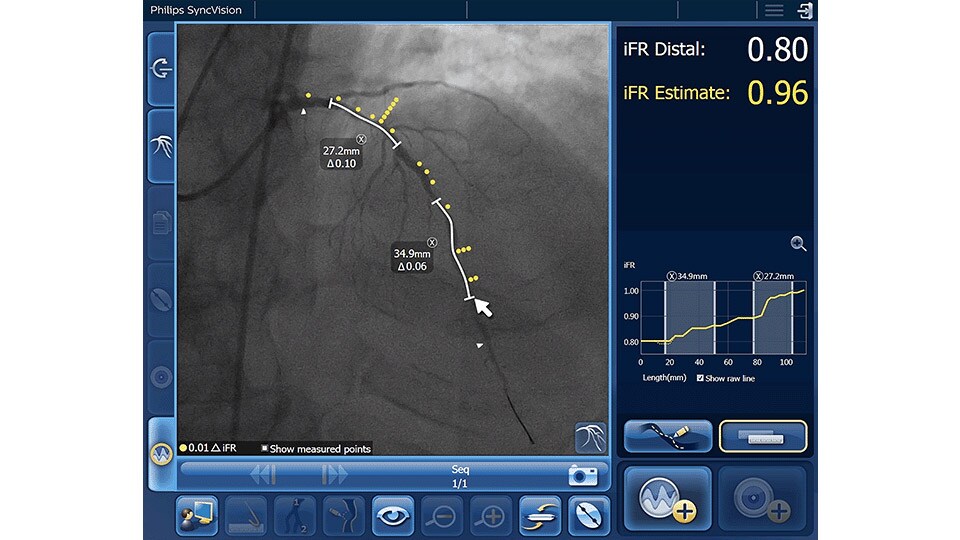

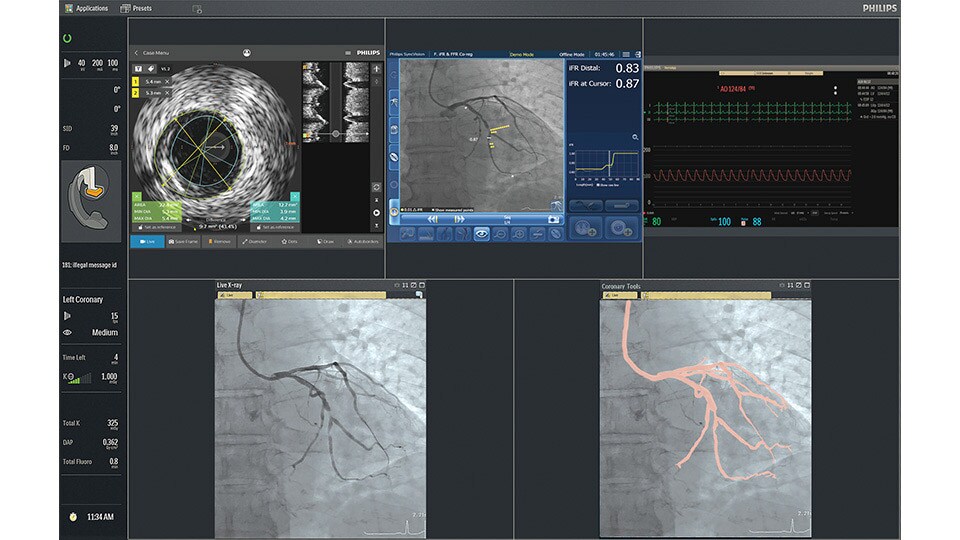

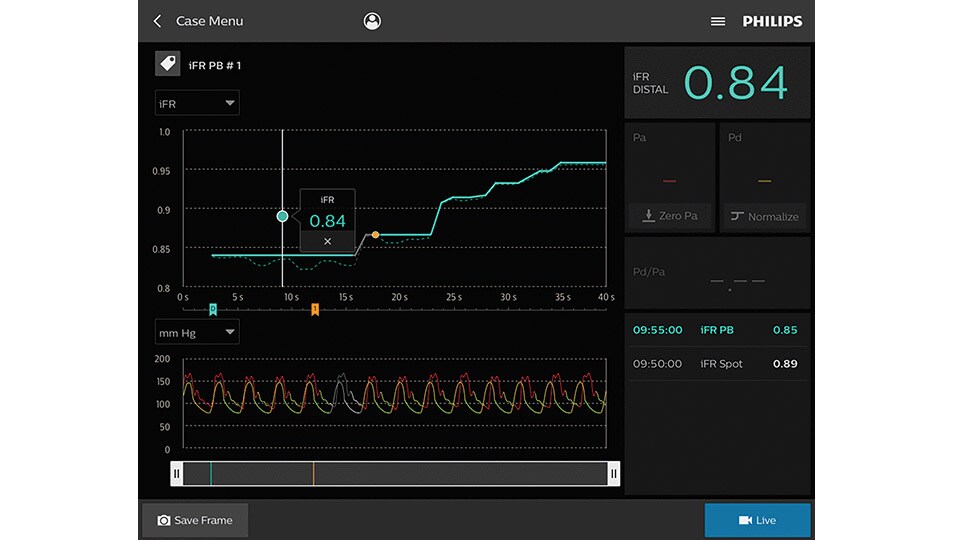

Philips PCI guidance solutions incorporate non-invasive and adjunctive IVUS and iFR modalities, requiring less contrast for proper diagnosis.

  • Enable reduced contrast during PCI through the optimization of technology.
  • Provide an alternative imaging plan for renal impaired patients.
  • Personalize care for high-risk cohorts.



1. Mehran R, Aymong ED, Nikolsky E, et al. A simple risk score for prediction of contrast induced nephropathy after percutaneous coronary intervention: development and initial validation. J Am Coll Cardiol. 2004; 44(7): 1393-1399. doi:10.1016/j.jacc.2004.06.068.

2. Wang, H. E., Muntner, P., Chertow, G. M., & Warnock, D. G. (2012). Acute kidney injury and mortality in hospitalized patients. American Journal of Nephrology, 35(4), 349–355.

3. Brown, J. R., Rezaee, M. E., Nichols, E. L., Marshall, E. J., Siew, E. D., & Matheny, M. E. (2016). Incidence and In-Hospital Mortality of Acute Kidney Injury (AKI) and Dialysis-Requiring AKI (AKI-D) After Cardiac Catheterization in the National Inpatient Sample. Journal of the American Heart Association, 5(3), e002739.

4. Mohammed, N. M., Mahfouz, A., Achkar, K., Rafie, I. M., & Hajar, R. (2013). Contrast-induced Nephropathy. Heart views: the official journal of the Gulf Heart Association, 14(3), 106–116. doi:10.4103/1995-705X.125926.

5. Amin P, et al. Incremental cost of Acute Kidney Injury after Percutaneous Coronary Intervention in the United States. The American Journal of Cardiology, 125(1), 29–33.

6. Legrand, M. & Rossignol, P. 2020. Review article: Cardiovascular Consequences of Acute Kidney Injury. N Engl J Med 2020;382:2238-47. DOI: 10.1056/NEJMra1916393.

7. Manjunath G, et al. Level of Kidney Function as a Risk Factor for Atherosclerotic Cardiovascular Outcomes in the CommunityJACC 2003; 41:47–55.

8. Edwards, N. et al. Defining the Natural History of Uremic Cardiomyopathy in Chronic Kidney Disease: The Role of Cardiovascular Magnetic Resonance. J Am Coll Cardiol Img. 2014 Jul, 7 (7) 703–714.

9. Coca SG, Krumholz HM, Garg AX, Parikh CR. Underrepresentation of renal disease in randomized controlled trials of cardiovascular disease. JAMA. 2006; 296(11):1377-1384.

10. Dangas G, et al. Contrast-Induced nephropathy after percutaneous coronary interventions in relation to chronic kidney disease and hemodynamic variables. AJC 2005.

11. Chertow et al. “Renalism”: Inappropriately Low Rates of Coronary Angiography in Elderly Individuals with Renal Insufficiency. J Am Soc Nephrol 15: 2462-2468, 2004.

12. Weisbord S. AKI and Medical Care after Coronary Angiography: Renalism Revisited. CJASN November 2014, 9 (11) 1823-1825; DOI:

13. Brar et al. Hemodynamic-guided fluid administration for the prevention of contrast-induced acute kidney injury: the POSEIDON randomized controlled trial. Lancet 2014. DOI:

14. Brown et al. Does Safe Dosing of Iodinated Contrast Prevent Contrast-Induced Acute Kidney Injury? Circ Interv 2010;3:346-350.

15. Amin, A. P., Bach, R. G., Caruso, M. L., Kennedy, K. F., and Spertus, J. A. (2017). Association of Variation in Contrast Volume With Acute Kidney Injury in Patients Undergoing Percutaneous Coronary Intervention. JAMA cardiology, 2(9), 1007–1012.
